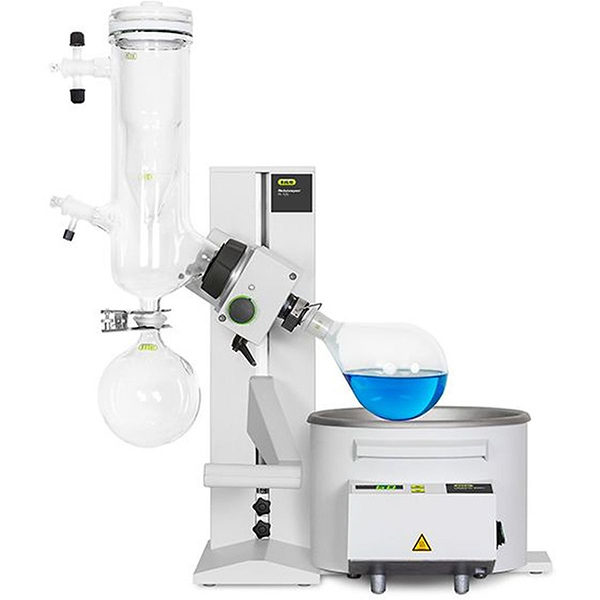

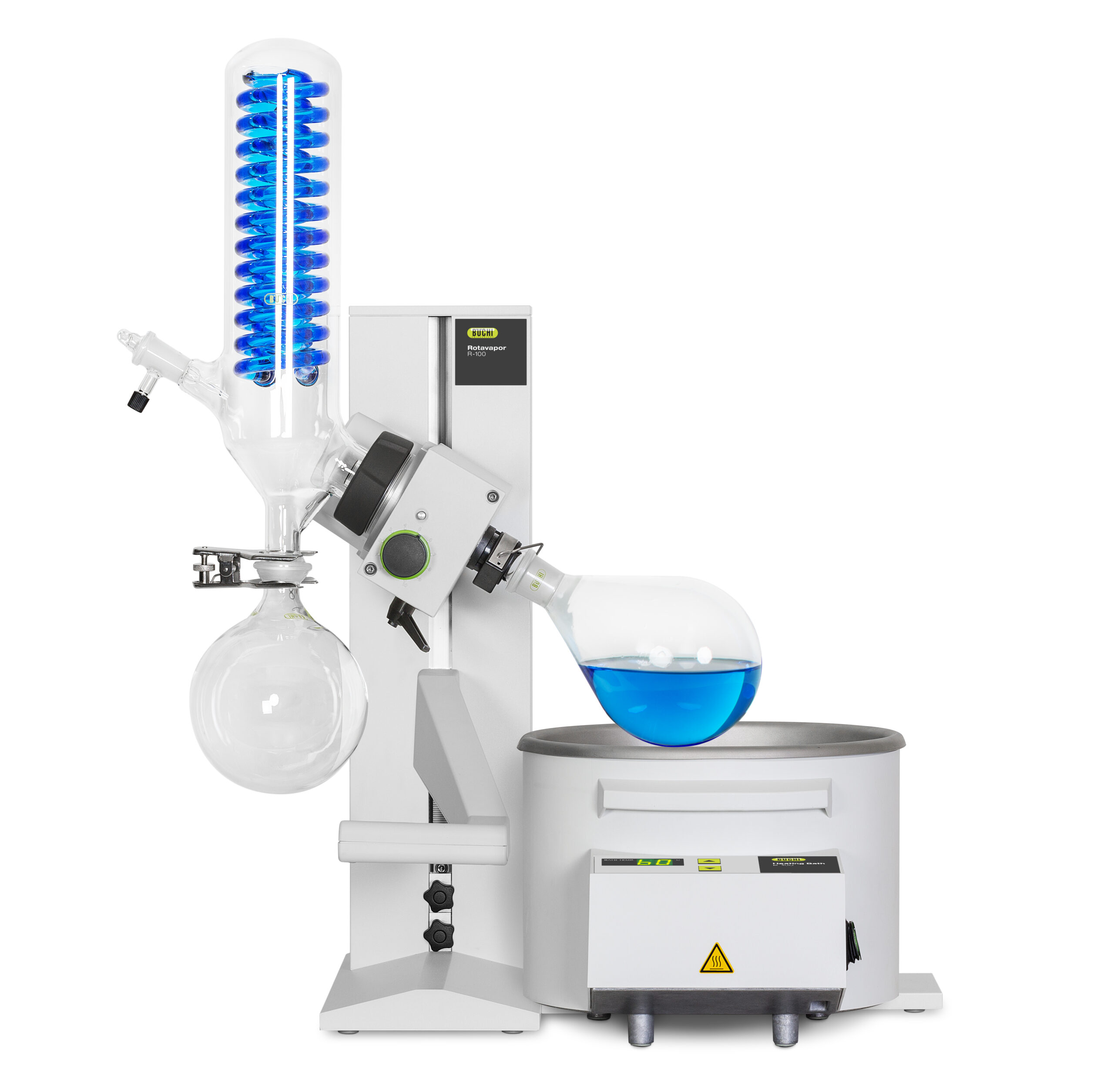

The Buchi R-100 rotary evaporator is a high-quality, entry level Rotavapor to meet the essential needs in classical laboratory applications.

It is capable of a manually adjustable rotation speed of 20 to 280 rpm and equipped with an action jack lift for manual lifting of the evaporating flask. Included is the selected condenser, 1 L receiving and evaporating flasks, 4L heating bath and a vapor duct (NS 29/32).

This package here shows the cold finger condenser/dry ice option as part of the set of P+G safety coated glassware. Water condenser option also available.

Pair with the Vacuubrand MD1C Vario PLUS vacuum pump for full vacuum control down to 2mbar.





Technical data
Rotavapor® R-100 (incl. Heating Bath B-100)

  • Weight (depending on glass assembly): 18 – 19 kg
  • Operating voltage: 24 V
  • Frequency: DC
  • Power consumption: 30 W, connected to Heating Bath B-100
  • Protection class: IP20
  • Angle adjustable: 0 – 35 °
  • Stroke distance: 145 mm (+ 115 mm extendable)
  • Rotation speed: 20 – 280 rpm
  • Flask size range: 50 – 4000 mL
  • Maximum flask capacity: 3 kg
  • Approval: CE
Share with:

Description

The Buchi R-100 rotary evaporator is a high-quality, entry level Rotavapor to meet the essential needs in classical laboratory applications.

It is capable of a manually adjustable rotation speed of 20 to 280 rpm and equipped with an action jack lift for manual lifting of the evaporating flask. Included is the selected condenser, 1 L receiving and evaporating flasks, 4L heating bath and a vapor duct (NS 29/32).

This package here shows the cold finger condenser/dry ice option as part of the set of P+G safety coated glassware. Water condenser option also available.

Pair with the Vacuubrand MD1C Vario PLUS vacuum pump for full vacuum control down to 2mbar.
