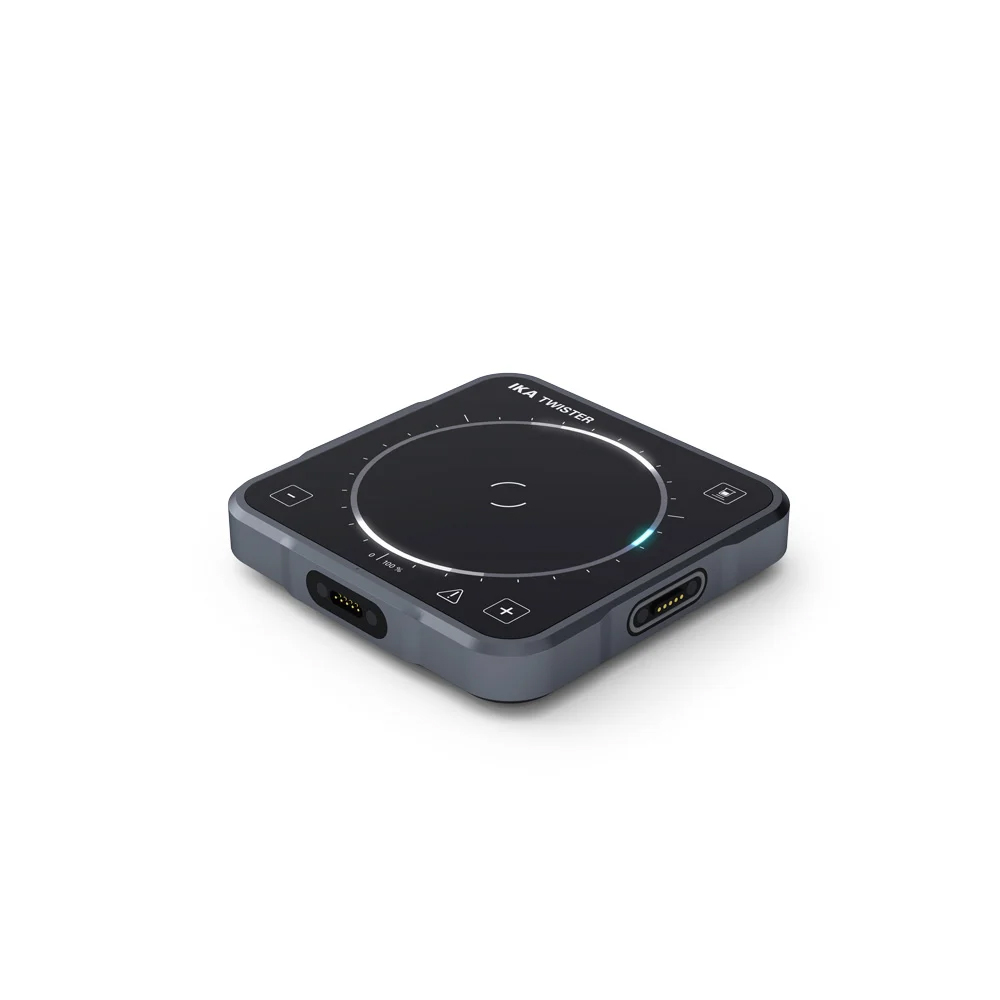

The IKA TWISTER is a compact mixing device with magnetic drive. This powerful, single-position magnetic stirrer can be used for mixing up to 5L at a maximum speed of 3,000 RPM and a viscosity of up to 500 mPAS.

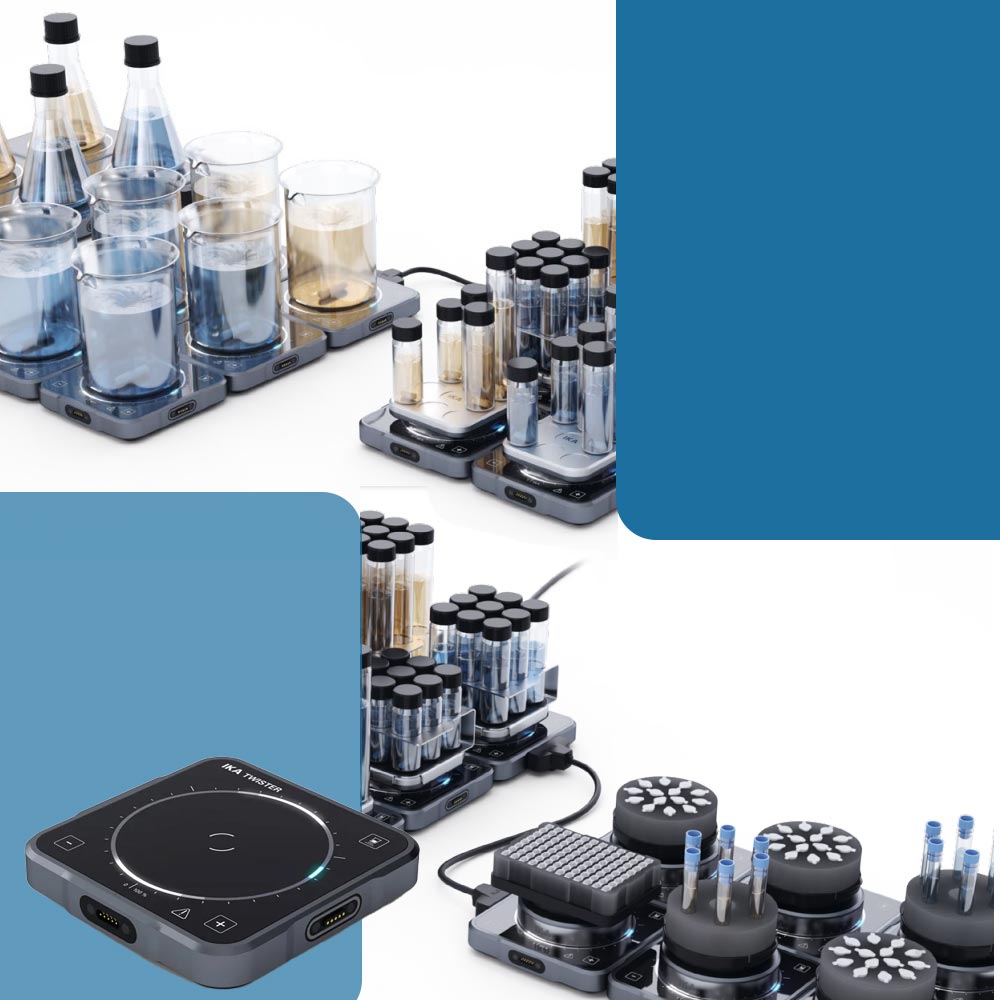

The innovative and useful way that this device differs from most magnetic stirrers is that it can be expanded to form a multi-position system with up to 30 stirring positions*.  These can be controlled either separately or simultaneously (leader-following principle).

In addition, an optional shaker attachment transforms the magnetic drive into a vortex or orbital shaker.

With intuitive operation, and chemically resistant 360° LED glass display, information is conveyed without any alpha-numeric display.  Speed and power rates can be displayed whilst stirring, and viscosity changes can be observed and displayed as a percentage. Mixing can be started by pressing a button as well as via integrated beaker recognition by placing a beaker on the platform, or touching a beaker already in situ.

The reverse function changes the direction of rotation at definable time intervals. This leads to a significant improvement of the mixing result, especially with samples that are difficult to mix.

Robust build quality and ultra-safe

The IKA TWISTER is suitable for use under harsh conditions. It can even be cleaned under the tap, for example, or operated in an incubator at temperatures up to 40°C.

The compact and innovative design has already been awarded the reddot Award 2022. It is particularly suitable for use in laboratories with limited space.

* Depending on the number of devices, a different power supply may have to be used. The included power supply is designed to power up to two devices.

Number of stirring positions 1
Stirring quantity min. per stirring position (H2O) 0.005 l
Stirring quantity max. per stirring position (H2O) 5 l
Motor rating output 5 W
Direction of rotation right / left
Speed display set-value LED
Speed display actual-value LED
Speed adjustment Touch key
Speed range 100 – 3000 rpm
Setting accuracy speed 100 rpm
Stirring bar length 10 – 30 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +6 K
Set-up plate material glass
Set-up plate dimensions 124 x 124 mm
Automatic reverse rotation yes
Intermittent mode optional
Viscosity trend measurement yes
Break detection stirring bar optional
Timer optional
Time setting min. 6 s
Time setting max. 1 min
Graph function optional
Programs optional
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) ±2 %
Modular expandable stirring system (2-16 units, if more than 4 devices HUB is neccessary) yes
Leader- follower operation (minimum 2 units required, leader unit controls synchronously follower unit) yes
Vessel detection (optional activated/deactivated) yes
Motor acceleration rise time adjustment (Only with HUB) optional
Definition of stirring groups (Control with HUB up to 6 individuell stirring groups) optional
Dimensions (W x H x D) 135 x 24 x 135 mm
Weight 0.6 kg
Permissible ambient temperature 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 66
RS 232 interface optional
USB interface optional
Bluetooth interface optional
WiFi Interface optional
Voltage 100 – 240 V
Frequency 50/60 Hz
Power input 10 W
Power input standby 2 W
DC Voltage 24 V=
Current consumption 400 mA
