High Capacity Nitrogen Generators

  • Summary
  • Specification
  • Downloads

For those requiring high capacity nitrogen generators for their work, we offer a range of systems with differing features and capabilities so please do discuss your requirements with us so we can ascertain the most appropriate model.

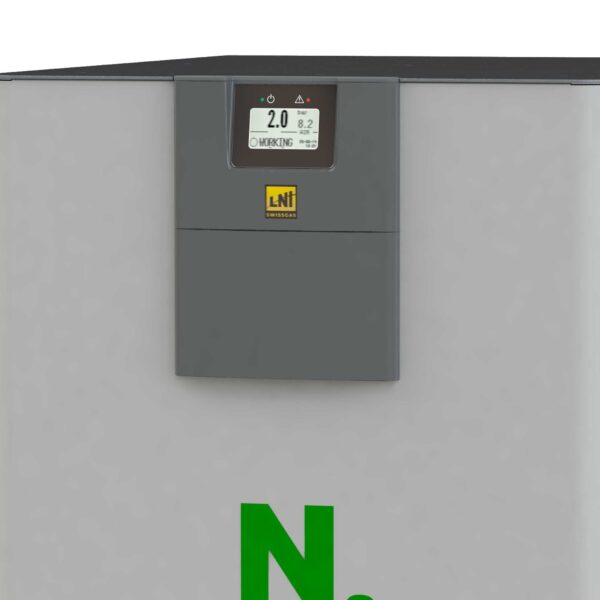

The NitroGen series NG CASTORE XL iQ and XS iQ use Membrane technology.  These are engineered to transform standard compressed air into a safe, regulated supply of high quality nitrogen gas at up to 70 L/min from the XL, up to 36 L/min from the XS, with both producing NG2 with a purity up to 99.9%.

Equipped with a scroll built-in oil-free compressor with inverter technology, the new iQ series also features the innovative direct drive motor-compressor system that results in lower noise than the previous version – great for improving your laboratory environment.

The exclusive electronic flow control combined with the compressor control by the inverter allows the system to generate nitrogen with a higher purity using a smaller volume at less pressure of air.  This results in reduced energy consumption (less costly to the environment and to your budget) and increases the life time of the compressor. Continuous control of the operating parameters of nitrogen allows users to easily maintain the system at its maximum efficiency.

The CASTORE XL iQ and CASTORE XS iQ high capacity nitrogen generators have been developed to meet specific requirements in term of gas, flow, purity and pressure in LC-MS applications. It can be used for the evaporation of solvents in samples being analysed.

Common features for the NG CASTORE XL iQ and XS iQ high capacity nitrogen generators includes:

  • Compatible with all LCMS
  • 200 cc/min UHP Nitrogen for collision cell
  • Low noise
  • Low maintenance
  • No belts
  • Direct drive
  • Generates nitrogen on demand
  • Exclusive electronic flow control
  • Ultra silent technology: 50 dB(A)
  • Reliable – No vibrations
  • Designed to run 24 hours a day
Models: NG CASTORE XL iQ 20 40 70
6920.70.20.1 6920.70.20 6920.70.40.1 6920.70.40 6920.70.70.1 6920.70.70
N2 outlet
Flow rate (Max) 20 l/min 40 l/min 70 l/min
Outlet pressure (Max) 9 Bar 8 Bar
Nitrogen purity LCMS grade (up to 99.9%*1)
Nitrogen for collision cell*2 200 cc/min @ 99.9999%*3 with option 6920.71.90
Communication
LCD with touch screen Standard
RS485 Standard
RS232 For service
General data
Power supply voltage (min-Max) 115-240 Vac (±10%) 50/60 Hz 220-240 Vac (±10%) 50/60 Hz 115-240 Vac (±10%) 50/60 Hz 220-240 Vac (±10%) 50/60 Hz 115-240 Vac (±10%) 50/60 Hz 220-240 Vac (±10%) 50/60 Hz
Connection type IEC C20
Rated power(Max) 1.3 KW 1.4 KW 1.5 KW 1.8 KW 1.9 KW 2.2 KW
Net weight 185 kg 185 kg 185 kg
Noise level < 45 dB < 50 dB
Heat value (BTU) 4440 5130 6500
Dimensions (W x D x H) 59 x 92 x 73 cm
Connections
N2 outlet port ¼” BSPP female
N2 UHP outlet port ¼” BSPP female
Drain port ¼” BSPP female
Operating/storage conditions
Temperature 5-35°C (41-95°F)
Humidity (max, non condensing) 80% [5-35°C (41-95°F)]
IP rating IP20
Pollution degree rating 2 (with no aromatic compounds)

*1 The purity refers to the residual oxygen, depends on flow and working pressure
*2 Optional, see below
*3 The purity refers to the residual oxygen

Models: NG CASTORE XS iQ 18 24 36
6920.80.18.1 6920.80.18 6920.80.24.1 6920.80.24 6920.80.36.1 6920.80.36
N2 outlet
Flow rate (Max) 18 l/min 24 l/min 36 l/min
Outlet pressure (Max)  8 Bar (115 psi)
Nitrogen purity *1 LCMS grade (up to 99.9%)
Dew point *2 < -60°C (<-76°F)
Communication
LCD with touch screen Standard
RS485 Standard
RS232 Standard
General data
Power supply voltage (min-Max) 115-240 Vac (±10%) 50/60 Hz 220-240 Vac (±10%) 50/60 Hz 115-240 Vac (±10%) 50/60 Hz 220-240 Vac (±10%) 50/60 Hz 115-240 Vac (±10%) 50/60 Hz 220-240 Vac (±10%) 50/60 Hz
Connection type IEC C20
Rated power (max) 1.2 kW 1.3 kW 1.4 kW 1.5 kW 1.8 kW
Net weight 145 kg
Noise level < 48dB(A) < 50dB(A)
Heat value (BTU) 4100 4440 5130
Dimensions (W x D x H) 51 x 85 x 69 cm
Connections
N2 outlet port ¼” BSPP female
Drain port ¼” BSPP female
Operating/storage conditions
Temperature 5-35°C (41-95°F)
Humidity (max, non condensing) 80% [5-35°C (41-95°F)]
IP rating IP20
Pollution degree rating 2 (with no aromatic compounds)

*1 The purity refers to the residual oxygen, depends on flow and working pressure
*2 Atmospheric Dew Point (ADP)
