Multicell-PLUS Parallel High Pressure Reactor

  • Summary
  • Specification
  • Downloads
  • Associated Products
  • Videos

The NEW Multicell-PLUS is an exciting addition to the Asynt range of pressure reactors, offering scientists an extremely flexible and customisable devise for screening chemical reactions in parallel under high pressure conditions.

Multiple cell volumes and configurations available, with pressure rating to 200 barg and working temperatures to 300°C and beyond depending on options selected.

Numerous factory-addition options available for heating, cooling, agitation, sampling/additions, condensing, liquid charging, gas sampling and much more. With such a huge wealth of options please do get in touch to discuss your chemistry requirements so we can tailor your system perfectly to meet your requirements.

  • Every Multicell-PLUS manufactured individually in the UK to suit your specific requirements
  • Manufactured from 316 stainless steel as standard but alternative materials available to allow higher temperatures and greater chemical resistance

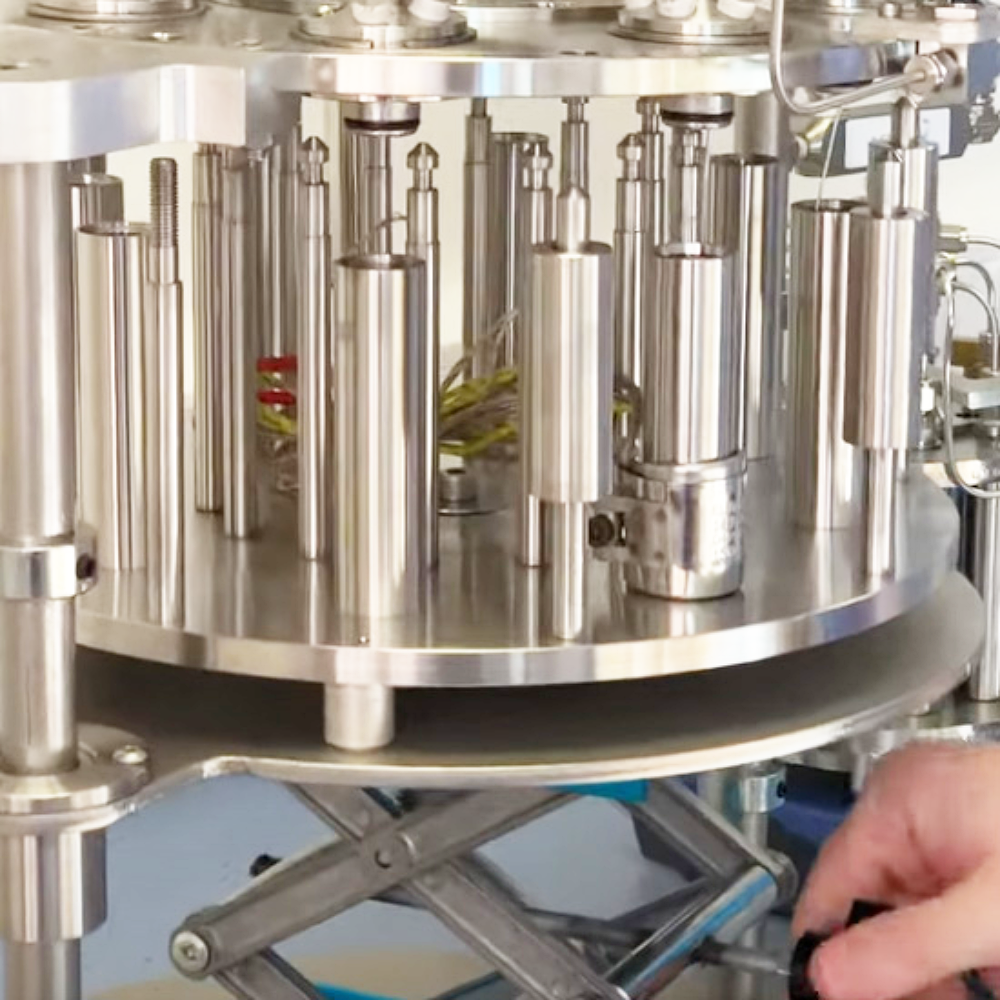

  • Highly recommended option for support frame and lab jack
  • Unique Multicell-Plus safety interlock
  • Optional motor-driven magnetically coupled overhead stirring to handle higher viscosity materials
  • 8 x 30 mL cells as standard, but 4, 6, and 10 cell arrangements possible with individual cell volumes up to 100 mL
  • Standard unit operates up to 50 barg and temperatures up to 200 ºC
  • Options up to 200 barg and temperatures of 300 ºC and beyond
  • Compact footprint of Ø220 mm for 4 & 6 cells units & Ø310 mm for the 8 & 10 cell assemblies
  • Entry level Multicell-PLUS permits a common gas inlet supply allowing for a single gas inlet and connection to all vessels.
  • Optional independent isolation of each cell offers ability to charge each vessel with a differing chemistry and pressures without cross contamination between cells
  • Heating possible by hotplate stirrer but several other methods of heating & cooling possible
  • Many other options available – please discuss your requirements

Share with:

Description

The NEW Multicell-PLUS is an exciting addition to the Asynt range of pressure reactors, offering scientists an extremely flexible and customisable devise for screening chemical reactions in parallel under high pressure conditions.

Multiple cell volumes and configurations available, with pressure rating to 200 barg and working temperatures to 300°C and beyond depending on options selected.

Numerous factory-addition options available for heating, cooling, agitation, sampling/additions, condensing, liquid charging, gas sampling and much more. With such a huge wealth of options please do get in touch to discuss your chemistry requirements so we can tailor your system perfectly to meet your requirements.
