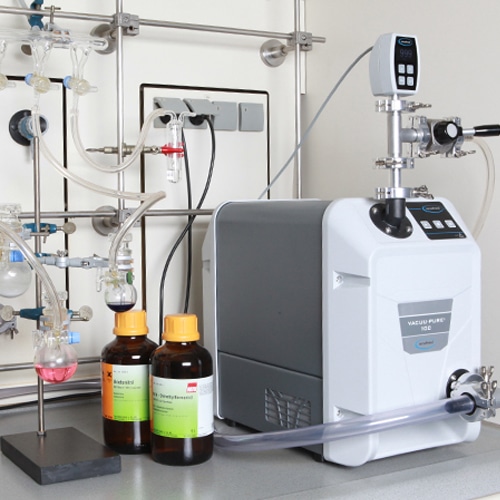

The NEW dry screw pump VACUU·PURE® 10C from Vacuubrand reliably delivers the benefits of oil-free vacuum technology in the pressure range of 10-3 mbar. The new vacuum pump combines three important benefits for the user: 100% oil-free, chemically-resistant, and no wear parts.

VACUU·PURE 10C is ideally suited for clean processes and the production of pure products. The screw pump is especially designed for processes in the vacuum range down to 10-3 mbar, however unlike other fine vacuum technologies it can be used across the entire pressure range from atmospheric pressure to its ultimate vacuum. At the same time, aggressive gases and vapours can be pumped without any worries because of the high chemical resistance. The use of a cold trap is no longer necessary in the majority of applications.

VACUU·PURE easily handles high vapour loads through its extraordinary condensate compatibility. Thanks to this capability, a gas ballast is unnecessary, avoiding associated disadvantages like the reduction in pumping capacity and an increase in noise levels. The integrated regeneration mode enables rapid drying of the pump at the end of the process. This allows sample throughput to be increased significantly as compared to other pump technologies.

For work performed with non-corrosive gases and vapours, there is the specially designed model VACUU·PURE 10.

Specification VACUU·PURE 10C
Max. pumping speed 9 m3/h
Ultimate vacuum (abs.) 5 x 10-3 mbar (at 1013 mbar ambient pressure)
Max. inlet pressure (abs.) atmospheric pressure
Max. outlet pressure (abs.) 15 mbar above atmospheric pressure
Ambient temperature range (operation) 10 – 40 °C
Ambient temperature range (storage) -10 – 60 °C
Inlet connection small flange KF DN 25
Outlet connection small flange KF DN 25
Rated motor power 0.7 kW
Protection class IP 20
Dimensions (L x W x H), approx. 507 x 269 x 413 mm
Weight, approx. 21.5 kg
Noise (sound pressure level), uncertainty 3 dBA 55 dBA
Items supplied Pump completely mounted, ready for use, connection with small flange KF DN 25 (2x centering and clamping rings included), with manual. To establish a hose nozzle connection, suitable KF flanges with hose nozzle are available for order.

Wide range of accessories available so please contact us to discuss your requirements.

Vacuubrand VACUU-PURE 10C brochure

For non-corrosive applications you may prefer:
Vacuubrand VACUU-PURE 10 brochure
