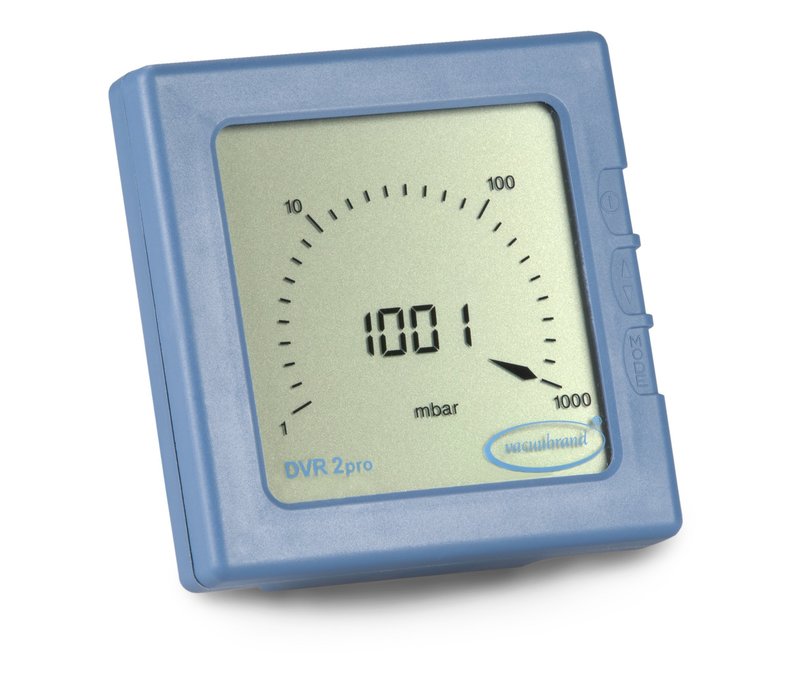

Vacuubrand DVR 2pro Vacuum Gauge

  • Summary
  • Specification
  • Downloads

The Vacuubrand DVR 2pro is a fully electronic vacuum gauge for the measuring range from atmospheric pressure to 1 mbar.

With all wetted parts made from enhanced chemical resistant material, this can be used under very harsh laboratory conditions.  The high accuracy and large graphical display from the DVR 2 have been carried forward on to this “pro” version.

One of the most significant enhancements of this model is the change to a normal 9 V Alkaline battery slot on the back of the gauge that’s easily accessible for quick replacement of the battery.  It also has a wider range of connection parts providing a great range of connection flexibility for laboratory use.

Performance features include:

  • improved functionality within the navigation menu helps to save energy and to increase the life cycle of the battery
  • large, graphical analog display with digital measuring values alows to detect tendencies and makes it easier to readout precisely
  • pressure unit user-selectable in mbar, hPa or Torr prevents unnecessary conversions
  • different vacuum connections and the additional support rod allow the use in almost every laboratory application
  • chemical resistant materials for wetted parts together with the capacitive ceramic diaphragm pressure sensor provide excellent long-term stability and accuracy
Vacuum sensor Integr.
Upper measuring limit mbar/torr 1060 / 795
Lower measuring limit mbar/torr 1 / 1
Measurement principle Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure
Accuracy of measurement < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.)
Temperature coefficient < 0.15 mbar/hPa/0.11 torr /K
Ambient temperature range (operation) °C 10 – 40
Ambient temperature range (storage) °C -10 – 60
Max. media temp. for continuous operation / short times °C 40 / 80
Automatic switch-off User-selectable: 1-600 min (default 5 min) or continuous operation
Measurement cycle User-selectable: Automatic or 1 x per 3s, 1 x per 1s, 3 x per 1s
Material of outer housing Robust plastic housing with good chemical resistance
Protection class IP 40
Power supply 9 V battery
Typical battery lifetime 4.000 h, stand-by: 30.000 h
Dimensions (L x W x H) mm 115 x 115 x 90
Weight kg 0.4
Items supplied Vacuum gauge complete with integrated vacuum sensor, including battery 9 V alkali-manganese, support rod, connecting parts and manual.
