Vacuubrand Vacuu-Select Vacuum Controller
  • Summary
  • Specification
  • Associated Products

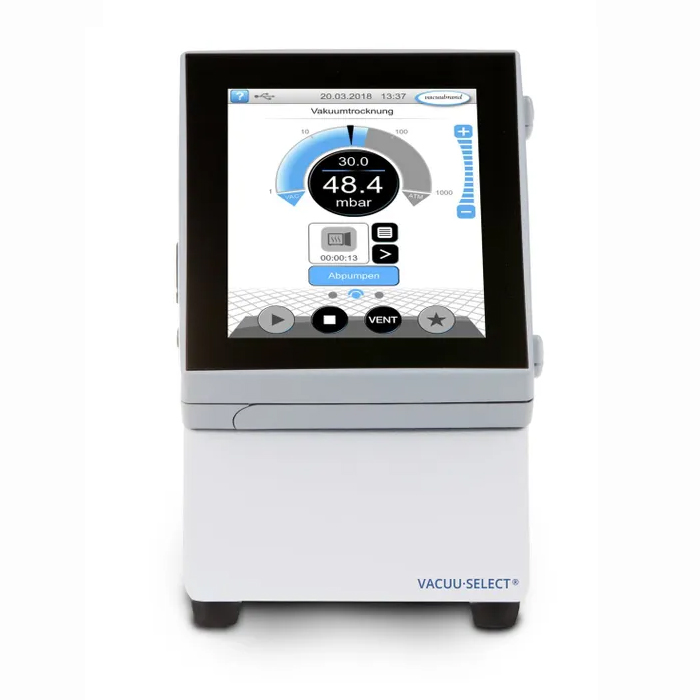

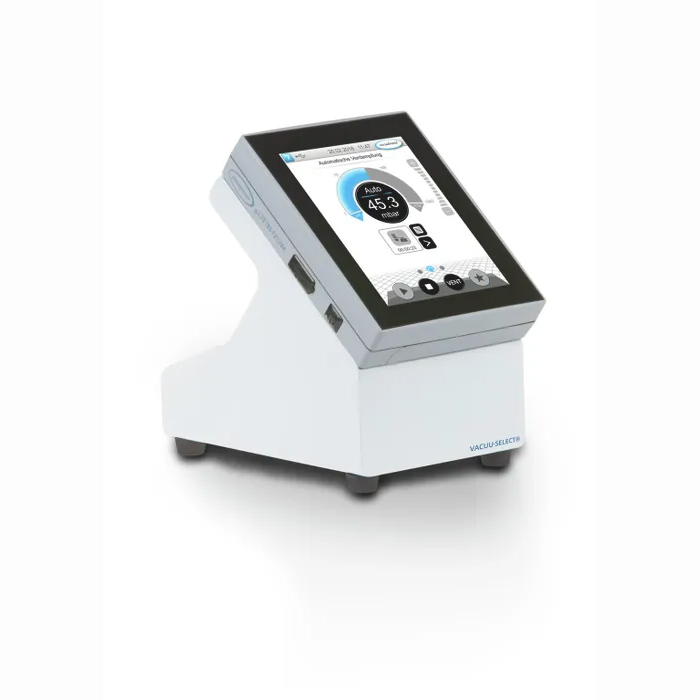

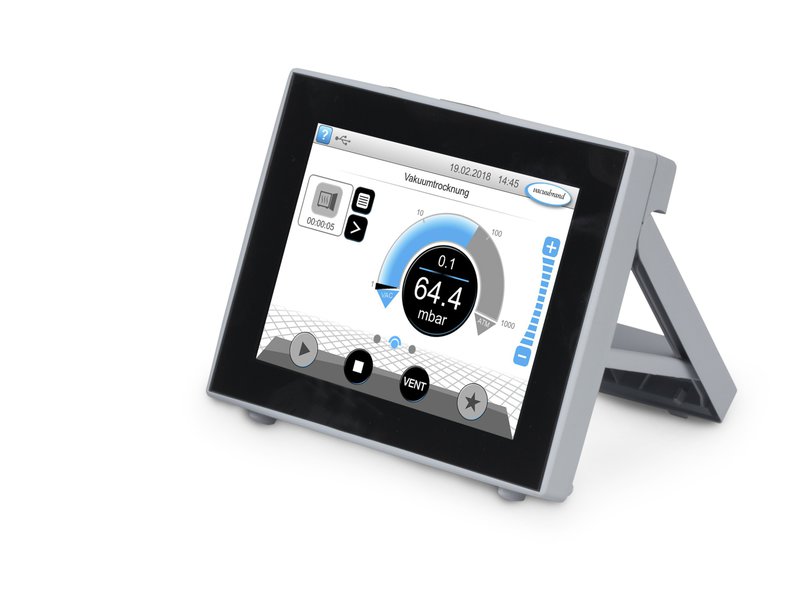

VACUUBRAND has introduced the VACUU·SELECT controller – an application-based controller with a touch screen display for all of your lab-scale vacuum processes.

Use manual set-point-control for simple processes, run fully automated distillations or create your own application with simple drag-and-drop editing.

Key performance features include:

  • Control for all common vacuum processes in chemistry labs
  • Graphic user interface simplifies laboratory work
  • Predefined applications for quick, save time and guarantee reproducible results
  • Application editor allows easy customization
  • Integrated help function

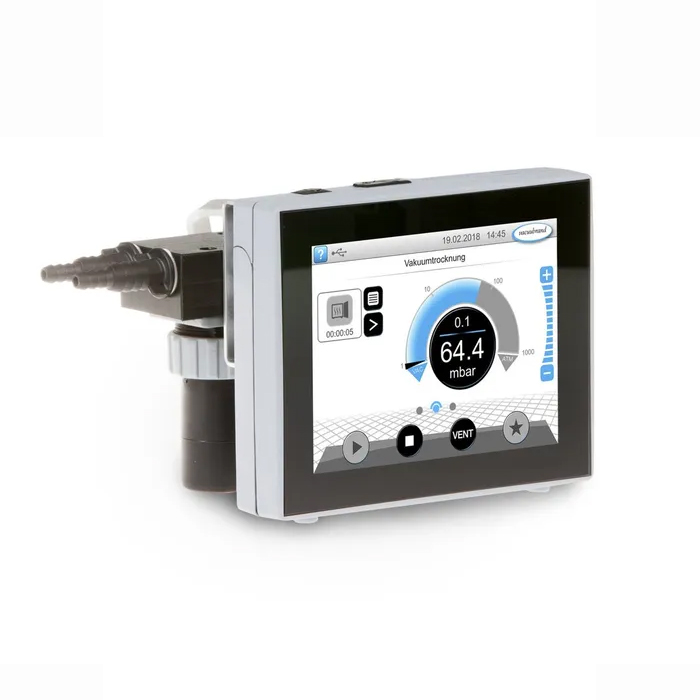

Vacuum sensor VACUU·SELECT Sensor
Cable length of vacuum sensor m 2
Upper measuring limit mbar/torr 1080 / 810
Lower measuring limit mbar/torr 0.1 / 0.1
Measurement principle Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure
Accuracy of measurement < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.)
Temperature coefficient < 0.15 mbar/hPa/0.11 torr /K
Venting valve, connection Integrated, hose nozzle DN 4-5 mm
Ambient temperature range (operation) °C 10 – 40
Ambient temperature range (storage) °C -10 – 60
Max. media temp. for continuous operation / short times °C 40 / 80
Material of outer housing Robust plastic housing with good chemical resistance
Degree of protection IP 40
Degree of protection of front side (also built-in version) IP 42
Max. power for VACUU·BUS® (24V DC) 4 A
Cable length of external power supply m 2
Interface Ethernet / USB (Type A)
Dimensions (L x W x H) mm 152 x 127 x 41
Weight kg 0.745
ATEX-approval II 3/- G IIC T4 X Internal Atm. only
