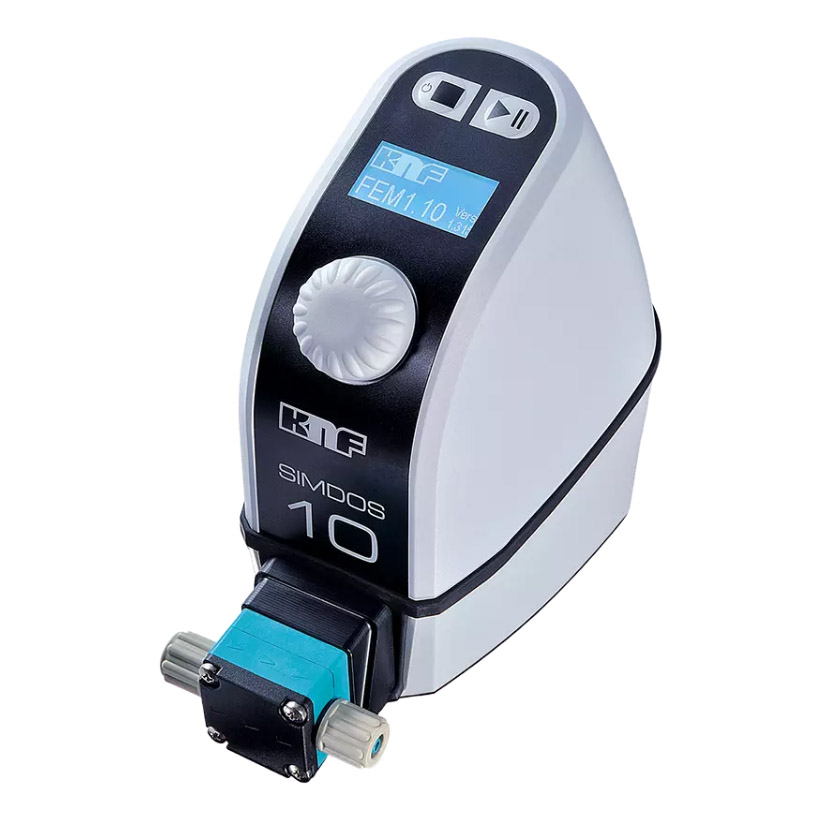

KNF SIMDOS 10 FEM 1.10 RC-P Liquid dosing pump

KNF SIMDOS 10 FEM 1.10 RC-P from Asynt
  • Summary
  • Specification
  • Downloads

The KNF SIMDOS 10 FEM 1.10 RC-P diaphragm liquid dosing pump offers wetted material combinations for optimal chemical resistance. It is equipped with manual, analog, and RS-232 controls with a user-friendly LCD graphic display.

Key features include:

  • Small footprint
  • Simple, intuitive operation
  • Manual, analog control and RS232 interface
  • Self-priming, can run dry
  • Simple calibration
  • Available with different material configurations for chemical resistance
  • Consistent, reliable flow rate
  • Available pump head materials: PP, PVDF, PTFE
  • Diaphragm materials: PTFE-coated, FFKM
  • Valve material: FFKM

This liquid handling pump comes with a useful range of accessories available to compliment it, including alternative valves, filters, connection tubes, mounting plates for wall or benchtop use, and a footswitch.

Please contact us today to discuss your requirements to ensure you get the correct model for your chemistry as there is a wide range of options available.

Flow Rate 1-100 ml/min
Programmable Dosing from 1-999 ml
Suction Height (max.) 3 mWg
Pressure (max.) 6 bar (rel.)
Weight 0.9 kg
Permissible Media Temperature 5–80 °C
Permissible Ambient Temperature 5–40 °C
Valve Material Options Kalrez® FFKM
Diaphragm Material Options PTFE coated, FFKM
Pump Head Material Options PTFE, PP, Stainless steel, PVDF
