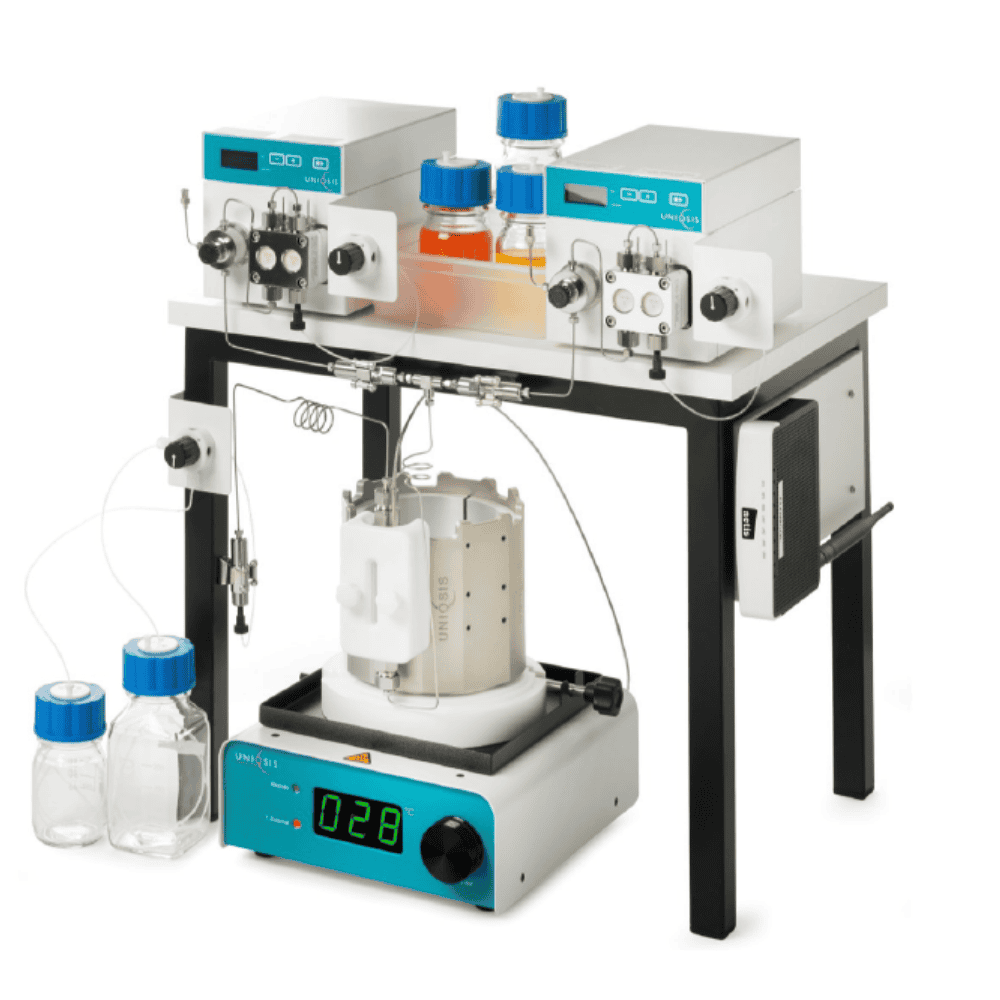

FlowLab Column – Flow Chemistry system
FlowLab Column is designed specifically as an optimised flow chemistry system for heterogeneous catalysis, providing highly efficient mixing and excellent reaction rates as well as a simple facility for scale up

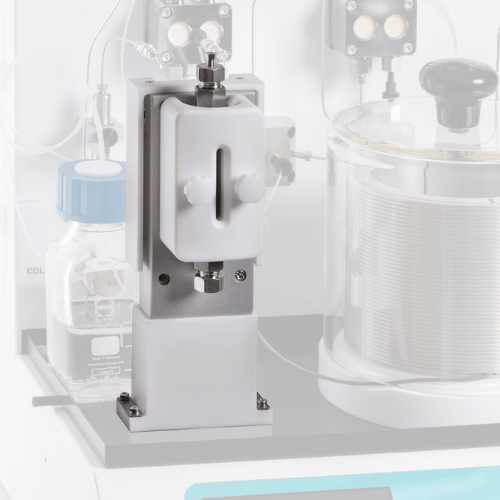

FlowLab Column incorporates a holder for up to 6 columns in parallel, with 10, 15, 20 and 25 mm OD.
The new FlowLab Column™ combines the Uniqsis HotCoil™ heated reactor module with a HotColumn™ adapter to enable operation up to +260°C (300°C as an option). This configuration can hold up to six 316 stainless steel columns in individual insulated holders, with the option to connect more columns in series for easy scale-up.
Our easy-to-use FlowLab™ application software lets you design programs, run saved reactions automatically and monitor experiments in real time.
Talk to us today to ascertain the ideal setup for your chemistry…
A wide range of options and accessories are available for the FlowLab Column so please get in touch to discuss your requirements.
Key details include:
| • | Operation up to 260°C (300°C as an option) |
| • | Holds up to six insulated stainless-steel columns |
| • | Operation up to 100 bar, with in-built pressure regulation |
| • | System control by easy-to-use FlowLab™ software |
| • | To scale up, simply connect more columns in series |
The FlowLab application affords control of the system via a step-through interface that is straightforward to use. Specific control screens allow users to modify system settings and perform automated priming and wash functions in addition to designing new, or loading previous, experiments. Reactions can be run automatically on a time basis, and reaction progress is monitored in real-time from a plot of temperature and pressures. The reagents used can be entered in text fields and logged data is automatically saved.
For operational safety, FlowLab software monitors pressure and temperature and will automatically shut down if there is a blockage, leakage or overheating.
All system components are CE marked and are covered by a 12 month warranty against component malfunction and workmanship.
