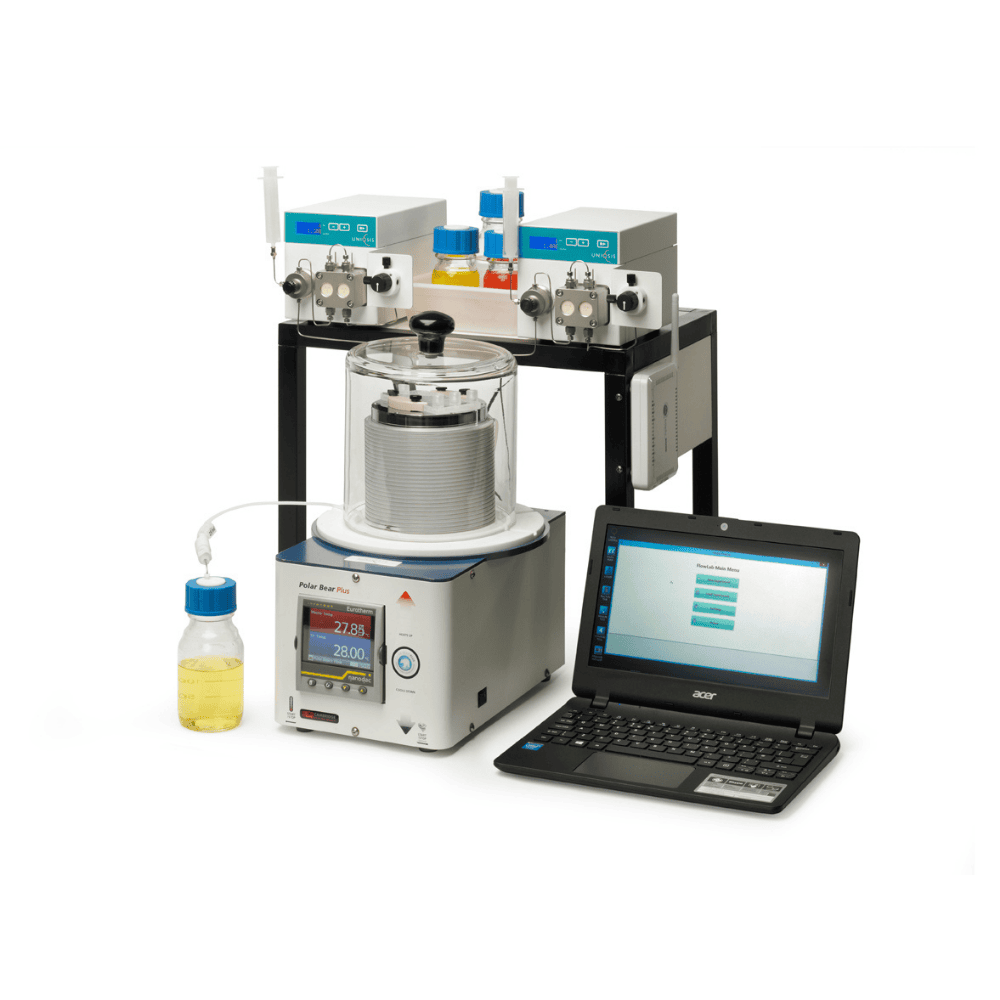

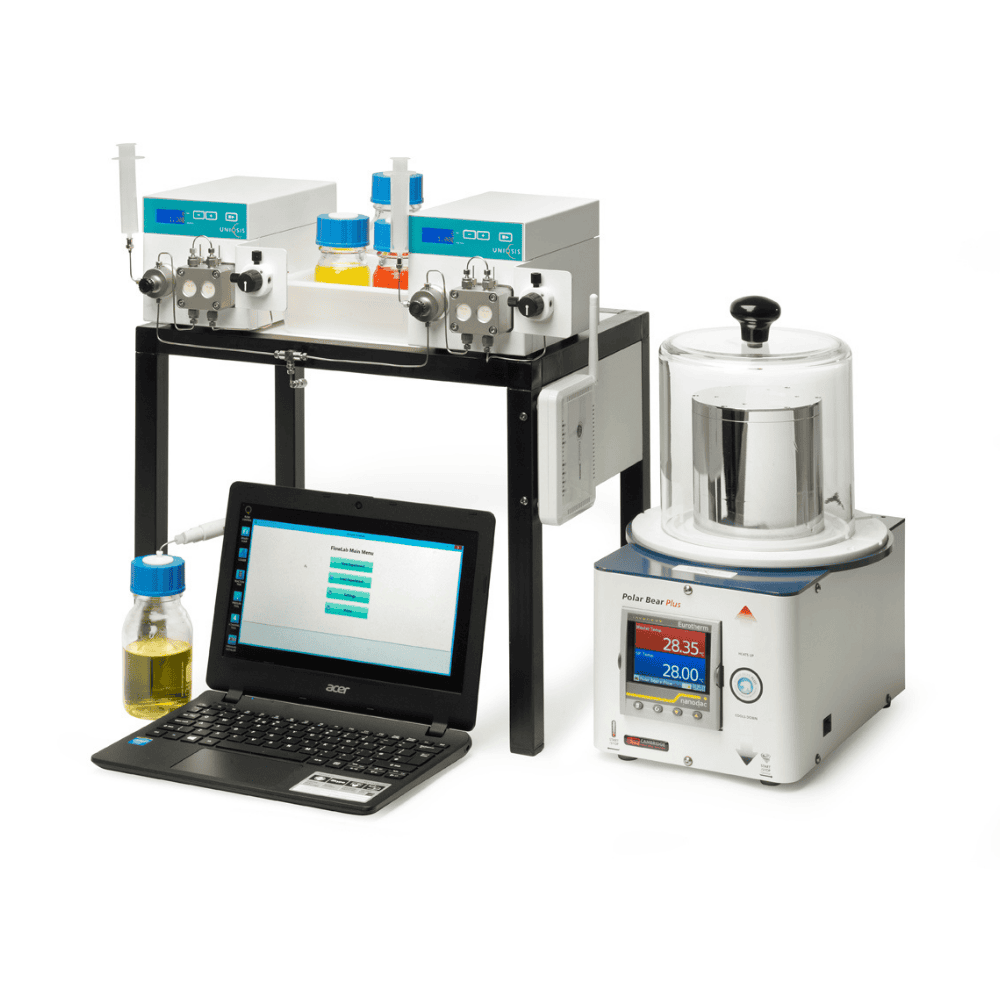

FlowLab Cold – Flow Chemistry system
FlowLab is a versatile modular temperature-controlled flow chemistry system that operates from -40 oC to 150 oC; without the need for card-ice or liquid nitrogen.
FlowLab Cold integrates the state-of-the-art heating and cooling reactor module, Polar Bear PLUS Flow, with the platform, making it ideal for flow chemistry applications requiring these very low or high reaction temperatures.
The standard system comes complete with 2 high pressure pumps and dedicated FlowLab control software that enables full manual control and the ability to program a single automated experiment.
The reactor modules are compatible with all Asynt coil reactors. Column reactors can also be fitted by adding the HotColumn accessory and our glass Static reactor/mixer Chips can be mounted on the Polar Bear Plus Flow by specifying the additional Chip Holder.
Talk to us today to ascertain the ideal setup for your chemistry…
A wide range of options and accessories are available for the FlowLab Cold so please get in touch to discuss your requirements.
Key details include:
- -40 oC to +150 oC temperature range options
- Pmax = 100 bar
- User-friendly control interface for walk-up use
- Stainless steel or glass column reactors
- Future proof – can be upgraded to include 3 HPLC pumps & 2 reactor modules
The FlowLab application affords control of the system via a step-through interface that is straightforward to use. Specific control screens allow users to modify system settings and perform automated priming and wash functions in addition to designing new, or loading previous, experiments. Reactions can be run automatically on a time basis, and reaction progress is monitored in real-time from a plot of temperature and pressures. The reagents used can be entered in text fields and logged data is automatically saved.
For operational safety, FlowLab software monitors pressure and temperature and will automatically shut down if there is a blockage, leakage or overheating.
All system components are CE marked and are covered by a 12 month warranty against component malfunction and workmanship.
