Drying Cabinets

Drying Cabinets

Improve lab performance & save money

  • Summary
  • Specification
  • Associated Products

Our range of drying cabinets are suitable for general warming and heating of laboratory instrumentation and drying of glassware.

Both the insulated and non insulated units are proving to be an exceptionally popular product for improving efficiency and lab sustainability and saving energy costs. Made in the UK, the exterior is constructed from sheet steel finished in an easy clean powder coated paint.

Fitted with adjustable shelf runners, removable plated wire grid shelves and ventilation outlets.
The insulated range of units give far greater temperature control, allowing greater accuracy during the drying and warming process. The resulting reduction in energy requirements gives a performance saving of over 30% compared to the non-insulated range, which significantly reduces the running costs on these models, making them both highly efficient and very cost effective.

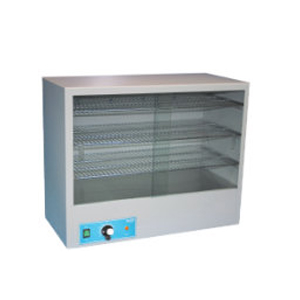

The 125 and 250 litre models have sliding, toughened glass doors.

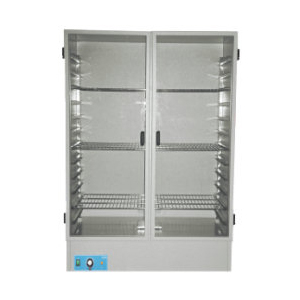

The 500 and 1000 litre models have hinged, toughened glass doors.
Heated by Incoloy sheathed elements positioned in the base of the unit.
The 500 and 1000 litre models have fan assistance as standard.
Features:
  • 4 sizes, 125 to 1000 litres
  • Maximum temperature of 50oC above ambient
  • Easy clean powder coated body
  • Thermostat control for set temperature
  • Toughened glass doors
  • Fan circulation on 500 and 1000 L models
  • Full 2 year return to base warranty
  • C.E. compliant

Drying Cabinet Options:

  • Insulated range with increased accuracy and savings in running costs
  • Extraction system on 500 and 1000 L models

Drying Cabinet Controls:

Control is via a direct reading thermostat with calibrated scale and tamper proof lock. The units also have a mains switch with indicator and heat indicator.
As an option an Extractor fan system can be fitted to the top of the 500 and 1000 litre units. This increases the throughput of air and reduces the overall drying time. All standard Drying Cabinets operate on a single phase 240 volts mains supply.
Non-insulated
Reference.
Number
Approx Capacity (litre)
Internal dims
(H x W x D cm)
External dims
(H x W x D cm)
No. of shelves
Weight
(kg)
ASY-DC125
125
43 x 72 x 40
60 x 74 x 42
3
40
ASY-DC250
250
52 x 98 x 48
66 x 100 x 50
3
55
ASY-DC500
500
138 x 58 x 62
168 x 60 x 65
3
75
ASY-DC1000
1000
138 x 116 x 62
168 x 118 x 65
3
130



Insulated
Reference.
Number
Approx Capacity (litre)
Internal dims
(H x W x D cm)
External dims
(H x W x D cm)
No. of shelves
Weight
(kg)
ASY-IWC100
100
40 x 67 x 37
60 x 74 x 42
3
45
ASY-IWC200
200
49 x 93 x 45
66 x 100 x 50
3
60
ASY-IWC425
425
135 x 53 x 59
168 x 60 x 65
3
80
ASY-IWC885
885
135 x 111 x 59
168 x 118 x 65
3
140
