Vacuubrand MD 1C Vario Pump

Vacuubrand MD1C Vario pump

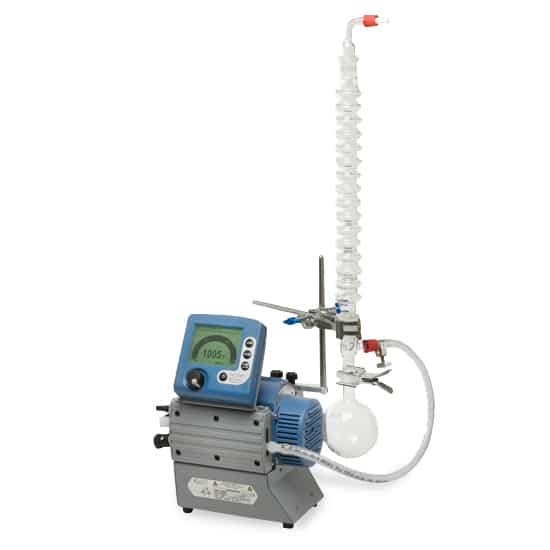

Post pump CondenSyn adapter kit

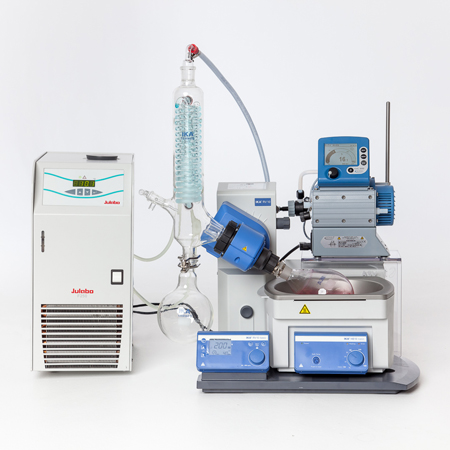

RV 10 with Vacuustand pump and chiller

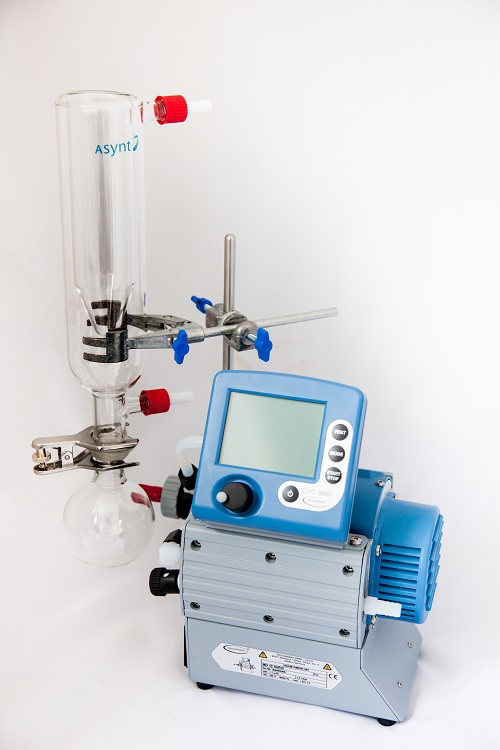

Vacuubrand MD 1C Vario with Asynt cold trap

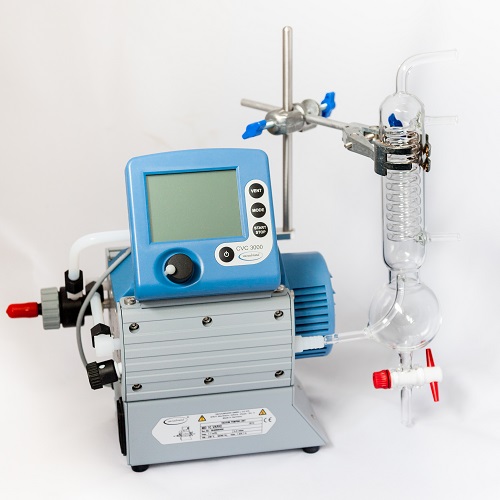

MD 1C Vario pump with water cooled condensor from Asynt

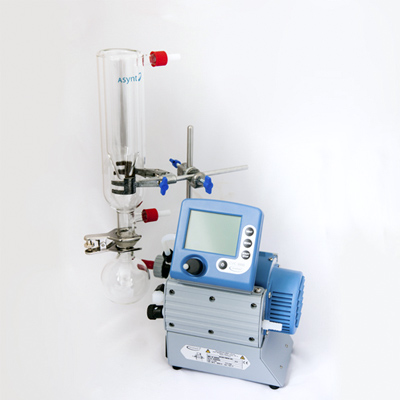

Vacuubrand MD1C Vario with Asynt condensor
  • Summary
  • Specification
  • Downloads
  • Videos

The Vacuubrand MD 1C Vario pump is ideal for vacuum applications with high boiling solvents.

The vacuum control to better than 5 mbar prevents superheating and foaming and therefore ensures a constantly high process safety. The control enables automatic detection of vapour pressure and automatic adjustment of the vacuum level to the process requirements.

Available with a cold trap condenser system for dry ice, designed by the Asynt chemists in addition to a water cooled condenser for this pump with small built in reservoir.  We also offer an adaptor kit to allow the use of the CondenSyn waterless air condenser with this pump.

  • High end results with all makes of rotary evaporator
  • Better than 5 mbar control
  • Simple One-touch vacuum control throughout the whole process, even for solvent mixtures
  • Suitable for high boiling point solvents
  • Oil-free diaphragm pump with outstanding chemical resistance
  • Ultra low vibration and whisper quiet operation
  • Available with extended warranty (please ask for more information)
