“More than an alternative to a planetary ball mill”

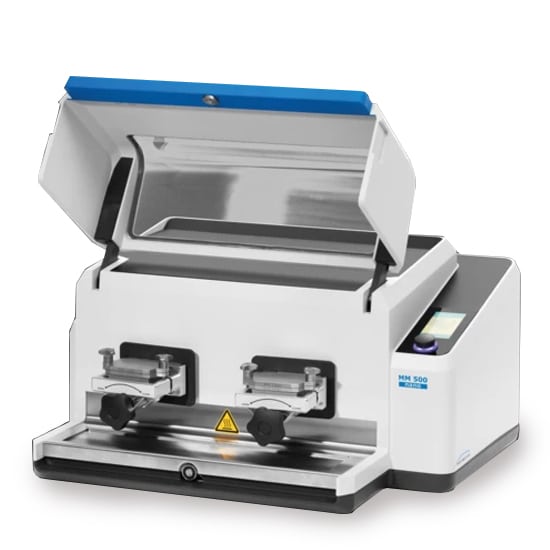

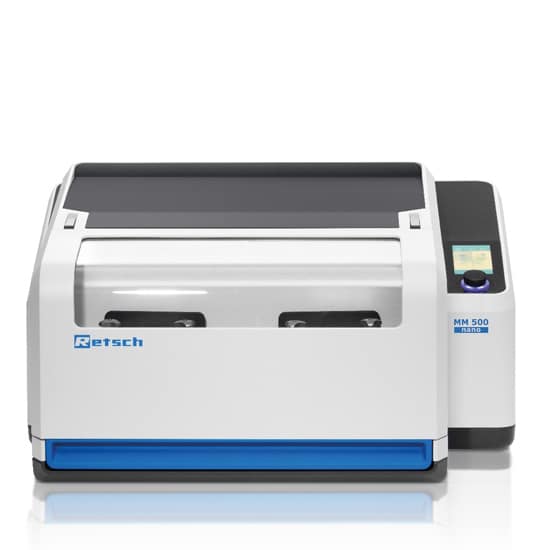

The mixer mill MM 500 nano is a compact, versatile bench-top unit which has been developed specially for dry, wet and cryogenic grinding of up to 2 x 45 ml sample material within seconds. With a maximum frequency of 35 Hz, it generates enough energy to produce particles in the nanometer range. The robust high-performance drive makes the mill suitable for long-term grinding processes up to 99 hours and thus very interesting for research and mechanochemistry.

Hence, the MM 500 nano is a unique mixer mill in the market to provide a real alternative to grinding in a planetary ball mill – with more comfortable handling and less warming effects.

Applications mechanochemistry, mechanical alloying, size reduction, mixing, homogenization, cryogenic grinding
Field of application agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals
Feed material hard, medium-hard, soft, brittle, elastic, fibrous
Size reduction principle impact, friction
Material feed size* <= 10 mm
Final fineness* ~ 0.1 µm
Batch size / feed quantity* max. 2 x 45 ml
No. of grinding stations 2
Setting of vibrational frequency digital, 3 – 35 Hz (180 – 2100 min-1)
Typical mean grinding time 30 s – 2 min
Dry grinding yes
Wet grinding yes
Cryogenic grinding yes
Cell disruption with reaction vials

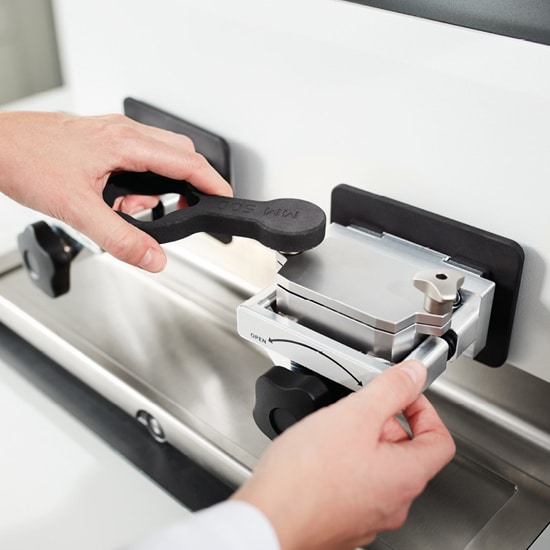

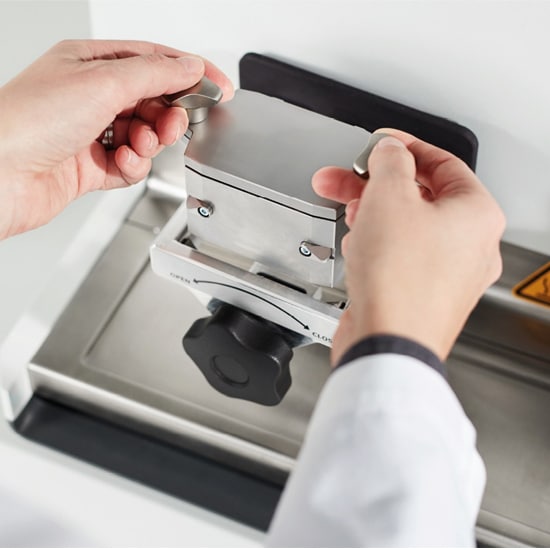

Self-centering clamping device yes

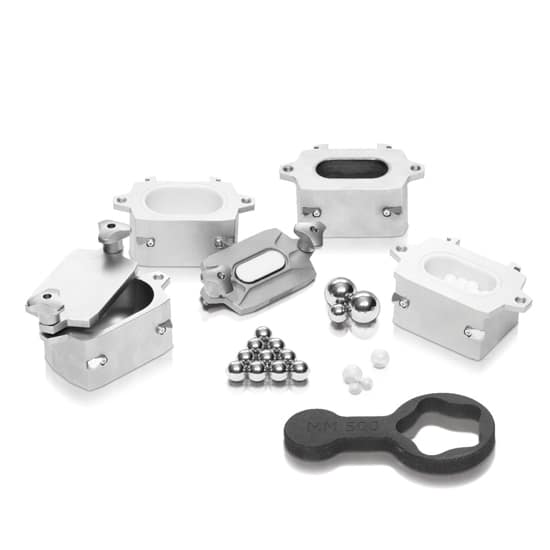

Type of grinding jars screw-lock with integrated safety closure devices
Material of grinding tools hardened steel, stainless steel, tungsten carbide, zirconium oxide
Grinding jar sizes 50 ml / 80 ml / 125 ml
Setting of grinding time digital, 10 s – 8 h
Total grinding time 99 h
Storable SOPs 12
Number of storable cycle programs 4 (with 99 repeats)
Electrical supply data 100-120V, 50/60 Hz; 200-230V, 50/60Hz
Power connection 1-phase
Protection code IP 30
Power consumption 750 W
W x H x D closed 690 x 375 x 585 mm
Net weight ~ 60 kg
Standards CE

*depending on feed material and instrument configuration/settings
