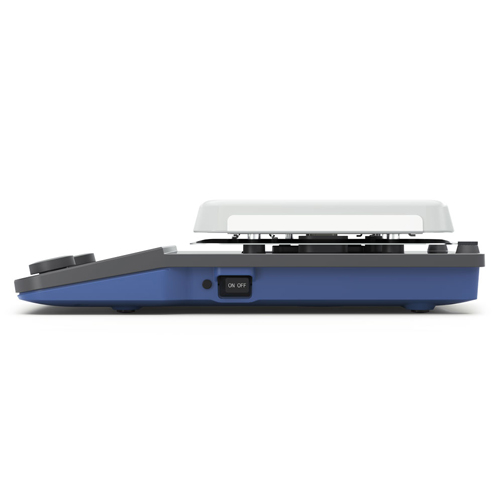

IKA C-MAG HS 7 Control Magnetic Stirrer Hotplate

IKA C-MAG HS 7 Control Magnetic Stirrer Hotplate

Room temperature – 500 °C

  • Summary
  • Specification
  • Downloads
  • Associated Products

The IKA C-Mag HS 7 control has a square top made of ceramic. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm.

IKA’s stands strongly by its product and technology and is offering a lifetime warranty for this product – scientists can focus on their experiments using a reliable hotplate stirrer.

IKA not only focuses on hardened glass because of visibility, chemical resistance and safety, it also optically changes the game of a magnetic stirrer with a glass surface. The C-Mag HS 7 control improves over time with regular firmware updates – control of kinetics and sensitive reactions are supported by the integrated timer and counter function – the IKA SmartTemp® function protects user intelligently. PT1000 temperature sensor included.

Number of stirring positions 1
Stirring quantity max. per stirring position (H2O) 20 l
Motor rating output 9 W
Direction of rotation right / left
Speed display set-value LCD
Speed display actual-value LCD
Speed control Turning knob
Speed range 50 – 1500 rpm
Setting accuracy speed 10 rpm
Stirring bar length 30 – 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) 2 +K
Heat output 1000 W
Temperature display set-value LCD
Temperature display actual-value LCD
Temperature unit °C
Heating temperature range room temp. – 500 °C
Heat control Turning knob
Temperature setting range 0 – 500 °C
Temperature setting resolution of heating plate 5 K
Connection for ext. temperature sensor PT1000, ETS-D5, ETS-D6
Temperature setting resolution of medium 1 K
Adjustable safety circuit 100 – 650 °C
Set-up plate material ceramic
Set-up plate dimensions 180 x 180 mm
Automatic reverse rotation yes
Intermittend mode yes
Viscosity trend measurement yes
Timer yes
Sensor in medium detection (Error 5) yes
Temperature measure range PT1000 -10 – 400 °C
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) 2 ±%
Heating rate (1l H2O in H1500) 5 K/min
Heat control accuracy of heating plate (at 100°C) 5 ±K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) 0.5 ±K
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) 0.5 ±K
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) 0.2 ±K
Dimensions (W x H x D) 220 x 88 x 354 mm
Weight 4 kg
Permissible ambient temperature 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS 232 interface yes
USB interface yes
Voltage 220 – 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 1020 W
Power input standby 2 W
