fReactor Classic HASTELLOY Kit

  • Summary
  • Specification
  • Downloads
  • Videos

Designed by chemists and engineers from within the Institute of Process Research and Development at the University of Leeds, the fReactor Classic HASTELLOY is simple to assemble and modify, making it suitable for a wide range of continuous-flow processes.

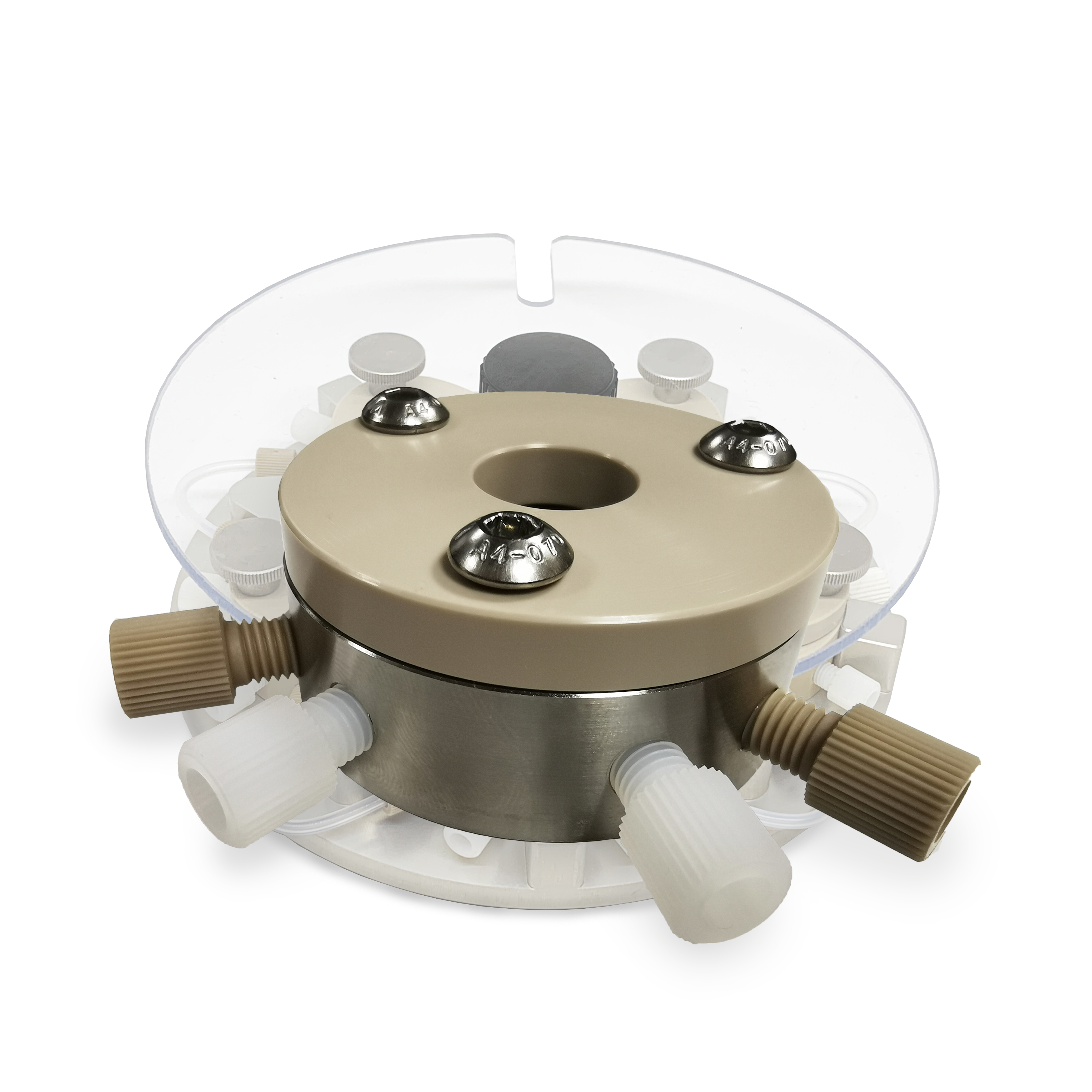

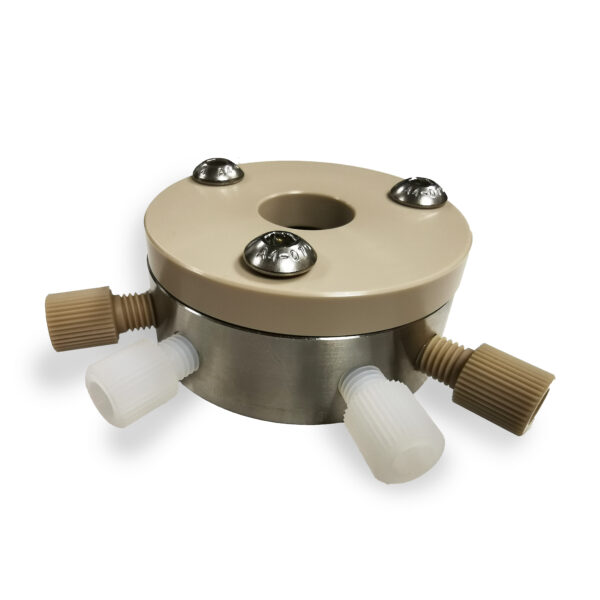

The fReactor Classic HASTELLOY Complete Kit includes 5 x Continuous Stirred Tank Reactors (CSTR) of 1.8 mL volume each, with hastelloy bases featuring toughened glass windows.

Heating and mixing are provided by a standard magnetic hotplate stirrer and fluidic pumps (e.g. HPLC, syringe, peristaltic, gear) are used to drive the reagents around the modules.

Integrating the efficiency of pipe-flow processing with the advanced mixing of a CSTR, the fReactor Classic HASTELLOY delivers a general “plug-and-play” setup which is well-suited to multiphasic reactions; allowing chemists to explore continuous-flow processing, with little expertise required.

fReactor isn’t just about the hardware; we also offer a dedicated website to help you get started with flow chemistry, and with setting up your fReactor module/s: https://www.freactor.com/



Kit comprises:

  • 5 x Continuous Stirred Tank Reactors (CSTR) of 1.8 mL volume each, with hastelloy bases featuring toughened glass windows.
  • 5 x PEEK fReactor Classic Lids
  • 1 x Aluminium holding plate with thermocouple hole & protective screen
  • 15 x Viton o-rings
  • 6 x PTFE cross stirrer bars
  • 20 x flangeless PFA fittings with ETFE ferrules
  • 15 x PFA blanking plugs
  • 2.5 m x PTFE tubing
  • 1 x tube cutter
  • 1 x hex key

Further information on the fReactor Classic HASTELLOY, including examples of different reaction types conducted using the platform, can be found in: Org. Process Res. Dev. 2017, 21, 9, 1294-1301.

For further information on the principles of flow chemistry and how the fReactor platform fits into this please visit www.freactor.com

Complete your setup with the following accessories that we also provide:

  • Kalrez O-rings
  • Back pressure regulators
  • Pressure relief valves
  • Hotplate stirrers
  • Syringe pumps
